Project:
Ballymoney Railway Bridge
Short Description:

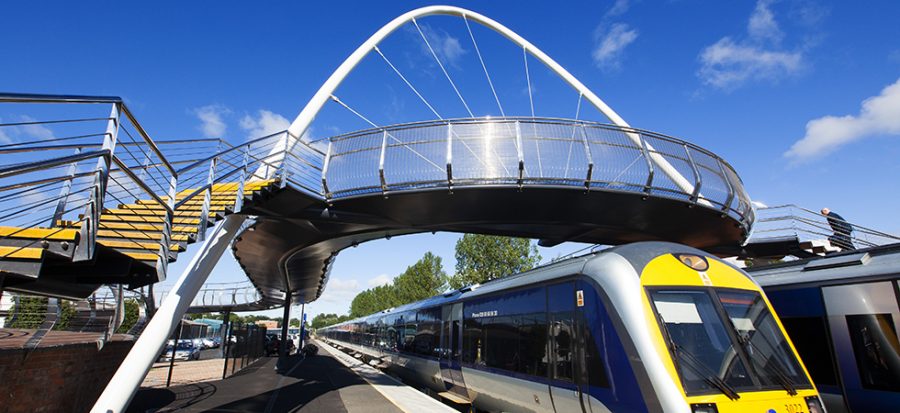

The new bridge design consists of a 230m long suspended pedestrian/cycleway from the adjoining Riverside Park, over the railway, and linking to the town centre. The bridge is 3m wide with its main span supported by tension cables to an inclined steel parabolic arch high above the walkway.
Location:
Ballymoney
Principal Contractor:
McLaughlin & Harvey
Consulting Engineer:
Doran Consulting
